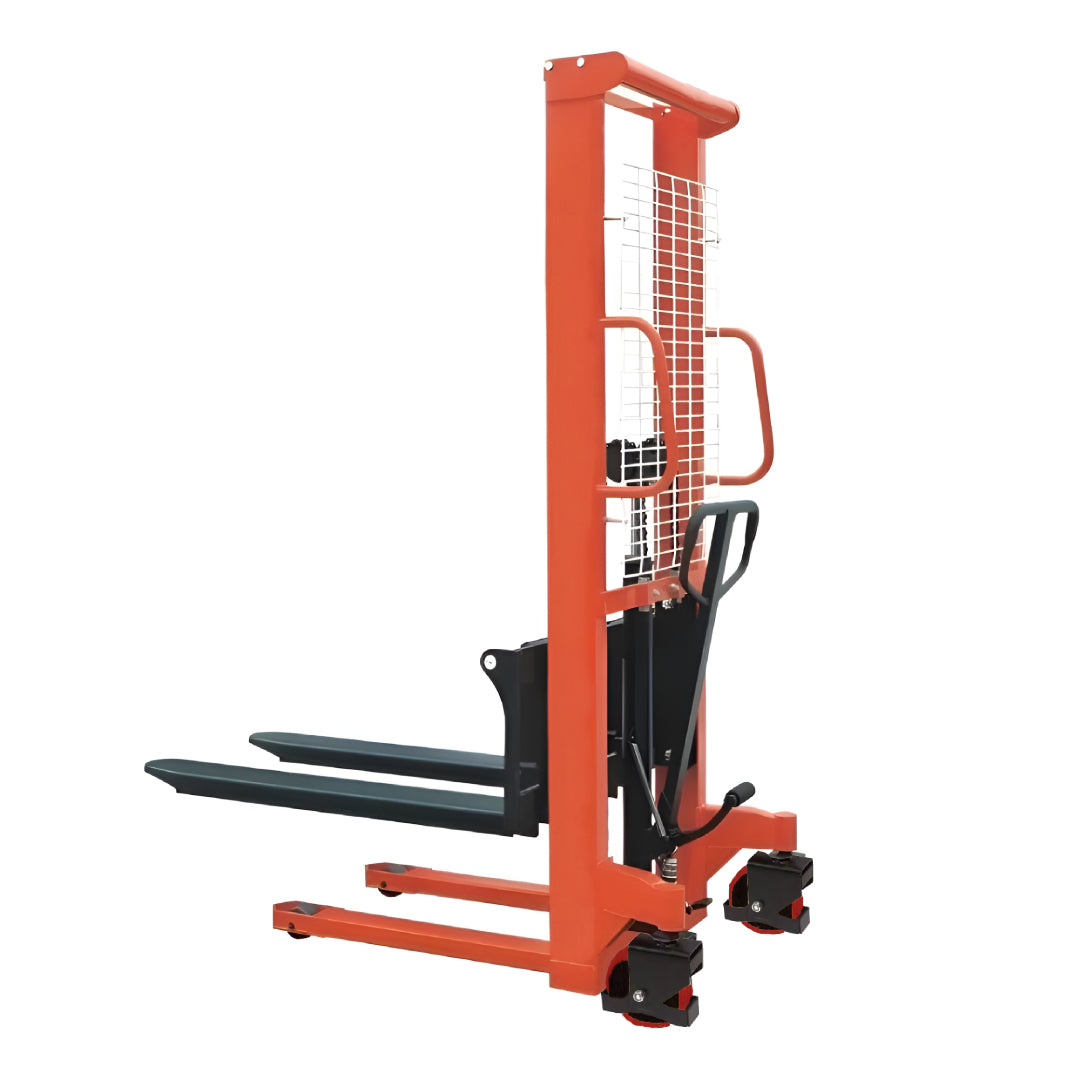

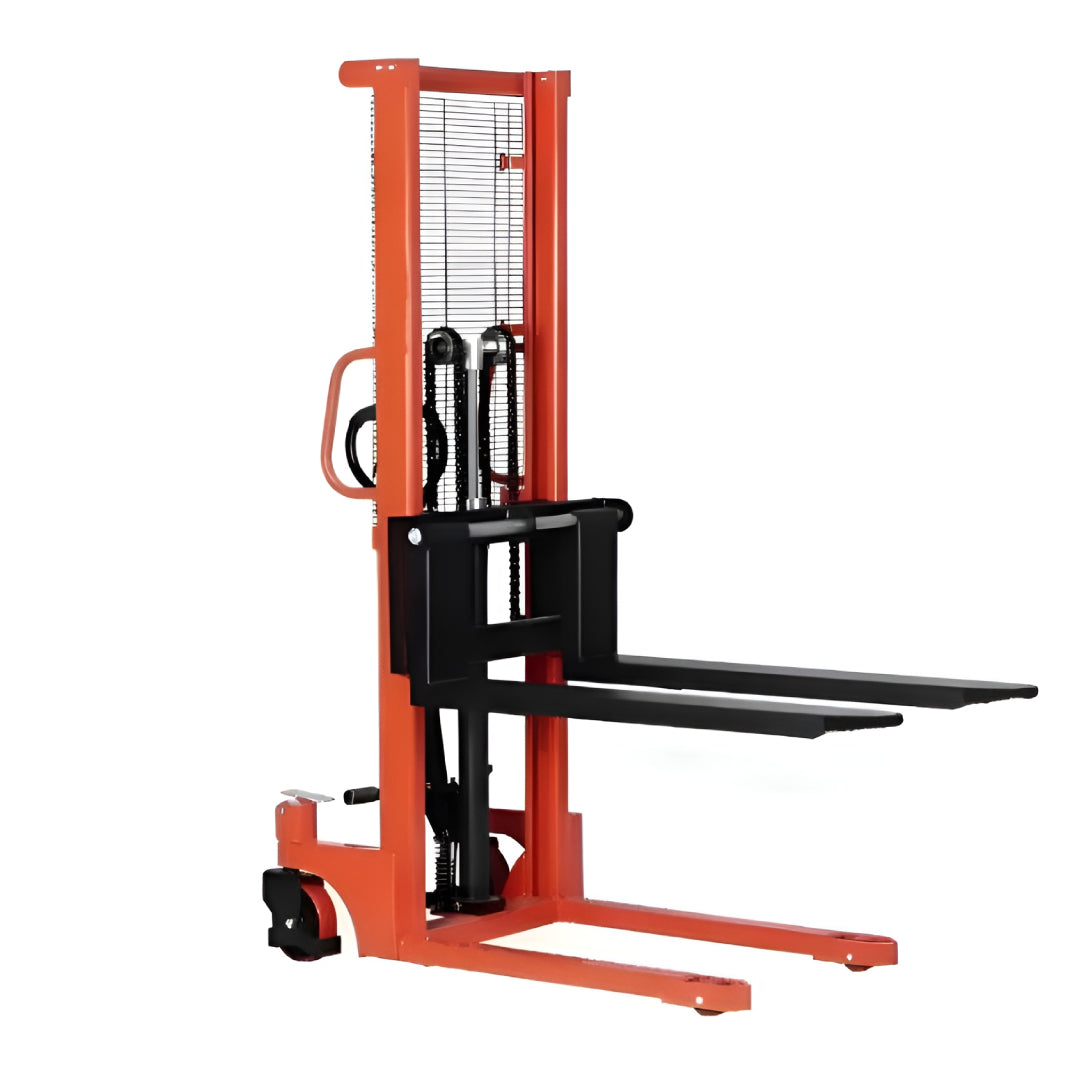

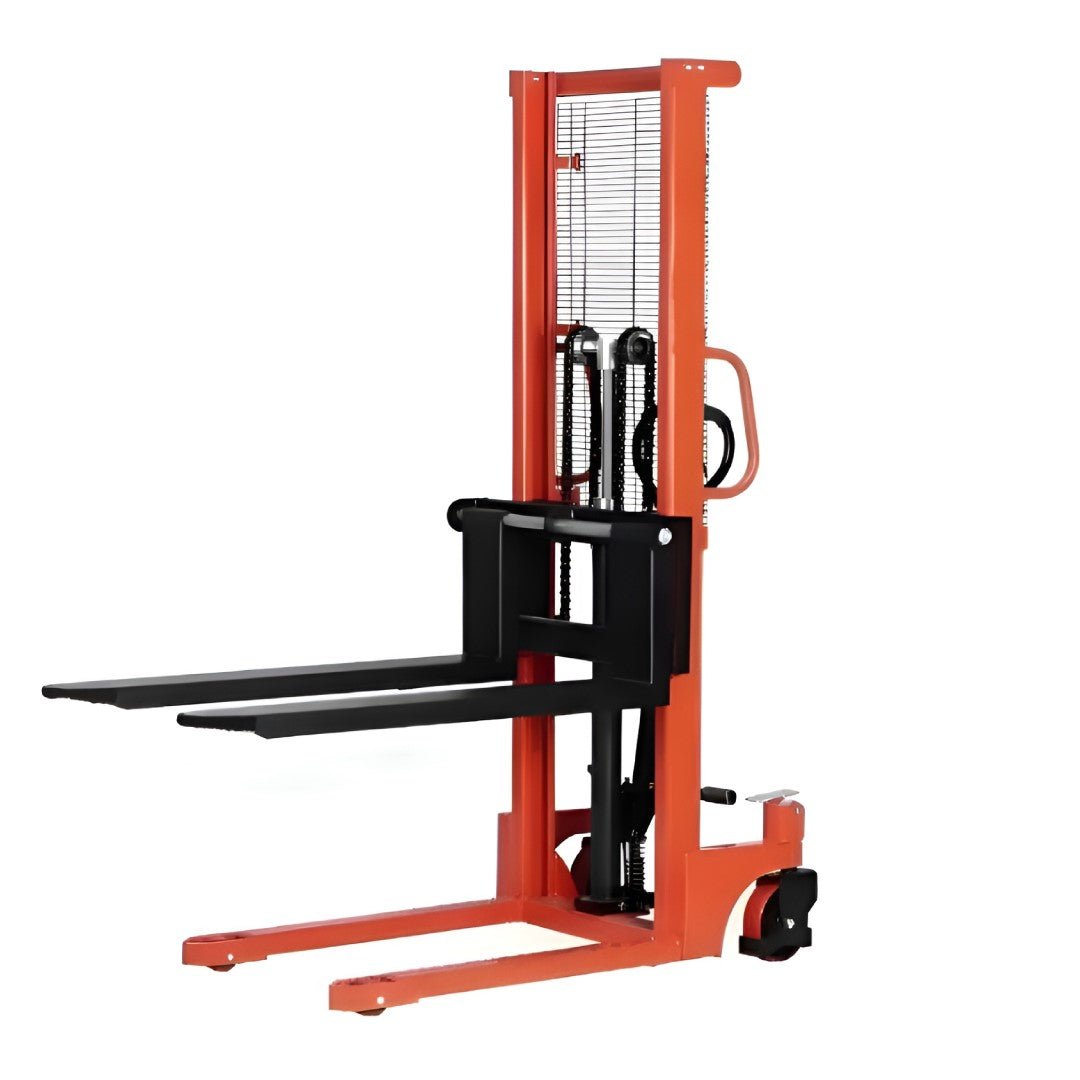

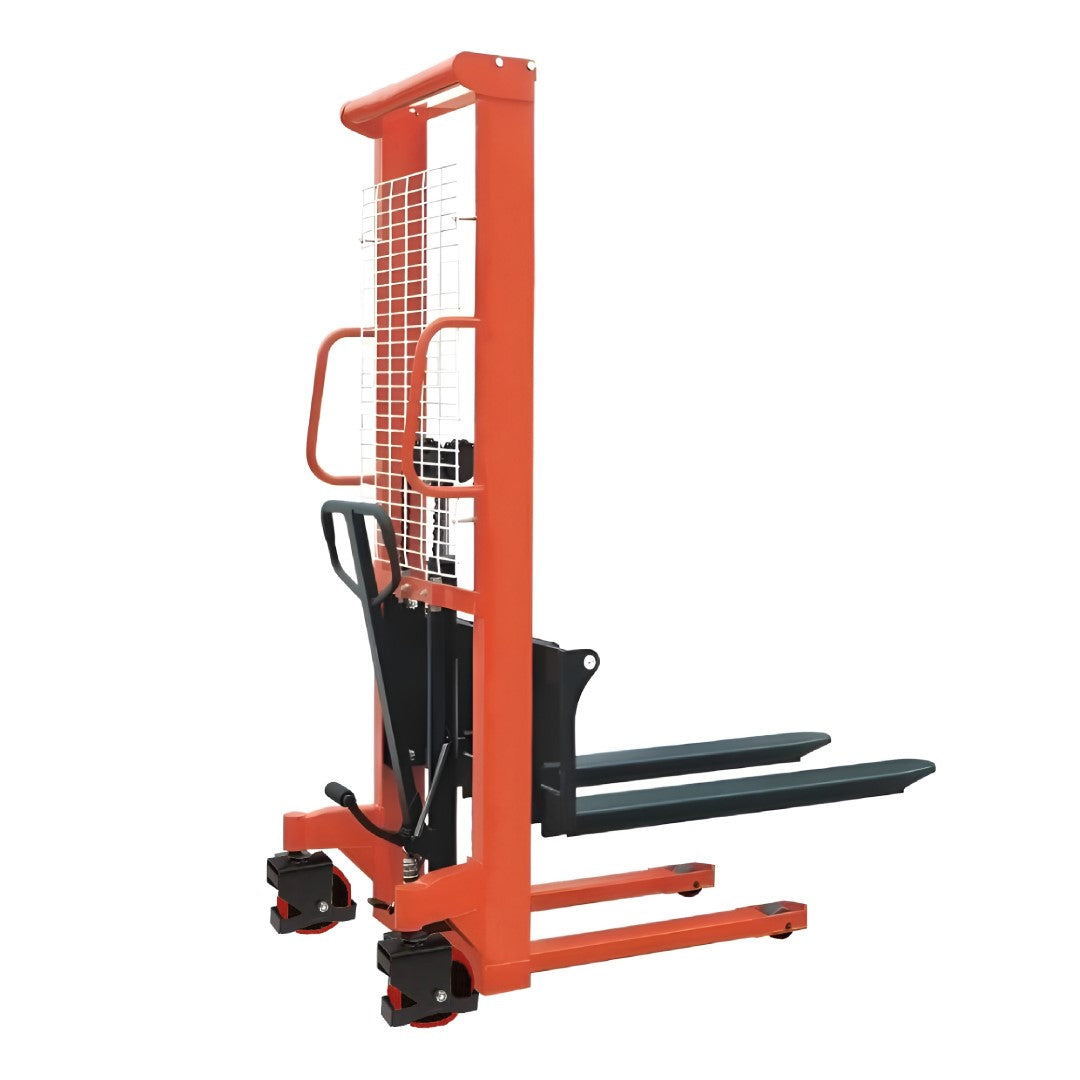

Inaithiram MS2PU16LHC Heavy Duty Hydraulic Manual Stacker 2Ton Capacity 1.6m Lift Height, Adjustable Fork Size (LxW) 1150X754mm PU Wheels with Brakes plus Handlebar
63,968
63,968
Inclusive of all taxes
M.R.P.: ₹ 127,936
| Unit Price | = ₹ | 54,210.00 |
| 18% GST | = ₹ | 9,757.80 |
50% Off | Save ₹ 63,968
Get Extra 5% off on your first order View all Offers
Product Features
| Product Type/Style | Hydraulic Manual Stacker |
|---|---|
| Special Features | Quick Lift and Release, Proportional Lowering, Adjustable Forks |
| Warranty | - |
| Assembly Kit | Required, Minimal use of spanners and screwdrivers |
| Brand Name | Inaithiram |
| Material | C Section Steel |
| Load Capacity | 2000kg(2Ton) |
| Item Dimension LxWxH | 1460mmx754mmx2020mm |
| Item Weight | 209kg |
| Finish Type | Powder Coated |
| Wheel Material | PU, Polyurethane |
About this item
- Built with a strong C-section steel frame, this manual stacker handles loads up to 2000kg (2 tons), providing stability and durability for heavy lifting tasks.

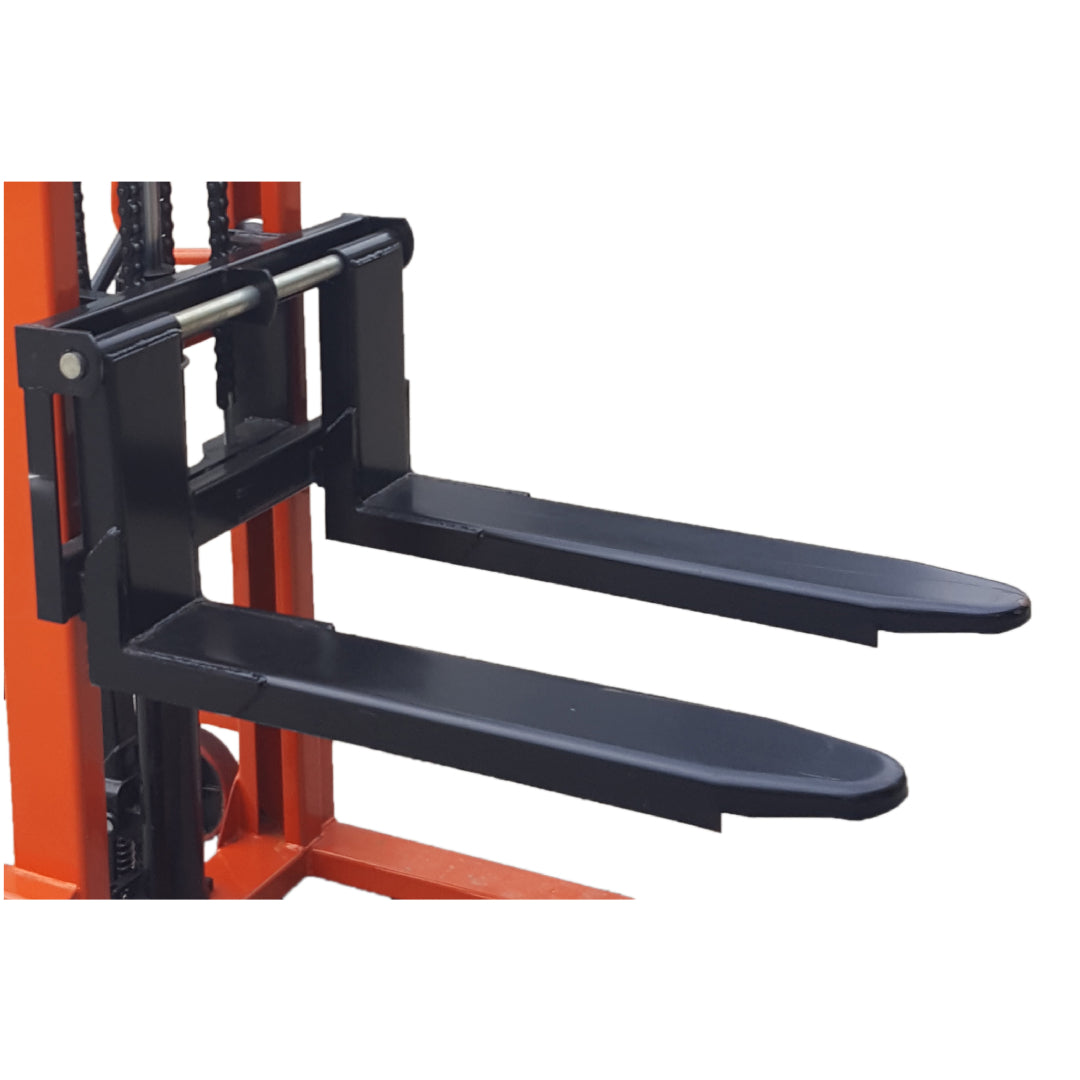

- The forks can be adjusted between 475mm and 675mm, allowing the stacker to accommodate various pallet sizes for increased versatility.
- The forks can be raised to 1600mm (1.6m), ideal for stacking and moving goods to higher storage areas.
- A compact design with a turning radius of 1450mm allows for smooth and precise maneuverability in tight spaces, improving workflow in warehouses.
- With an 80mm ground clearance and a lowered fork height of 90mm, the stacker can easily slide under pallets, allowing for convenient loading and unloading.
- The hydraulic pump, made from high-quality machined cast steel and finished with a powder coating, ensures durability and resistance to rust, offering long-lasting performance.

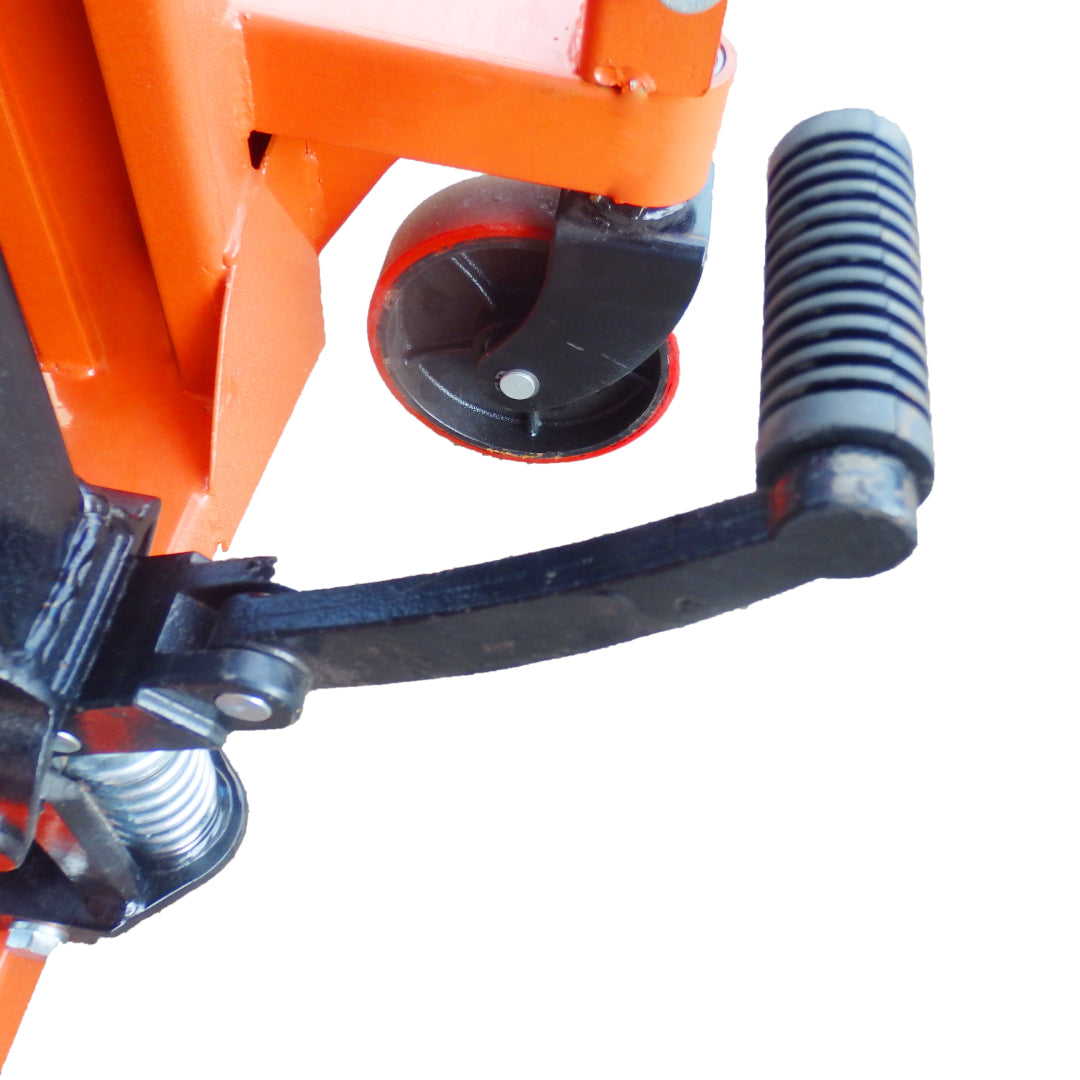

- Smooth Polyurethane (PU) rollers (80mmx70mm) and steering wheels (180mmx50mm) provide excellent traction and quiet operation on various surfaces, reducing noise and wear.
- The steering wheels are equipped with brakes to secure the load during lifting or movement, enhancing safety during operation.
- The proportional lowering function ensures controlled, gradual lowering of loads, preventing sudden drops and ensuring safer handling.
- The Quick Lift & Release feature allows for faster load raising, reducing the number of pump strokes required and improving overall efficiency.
- The stacker’s bright orange powder coated surface protects it from corrosion and scratches, maintaining its appearance and functionality for long-term use.
Product Specifications
| Model Number | WH-MH-MS2PU16LHC |
|---|---|
| Product Type | Hydraulic Manual Stacker |
| Load Capacity | 2000kg(2Ton) |
| Item Dimension LxWxH | 1460mmx754mmx2020mm |
| Item Weight | 209kg |
| Fork Length | 1150mm |
| Overall Fork Width | 754mm |
| Single Fork Width | 150mm |
| Total Height | 2020mm |
| Turning Radius | 1450mm |
| Ground Clearance | 80mm |
| Overall Raise From Ground | 1600mm(1.6m) |
| Lift Mechanism | Hand/Foot Operated Hydraulic mechanism |
| Lifting Capacity (Per Stroke) | 20mm |
| Pump Material | Machined cast steel |
| Rollers Size (DxW) | 80mmX70mm |
| Steering Wheel Size (DxW) | 180mmX50mm |
| Rollers Material | PU, Polyurethane |
| Wheel Material | PU, Polyurethane |
