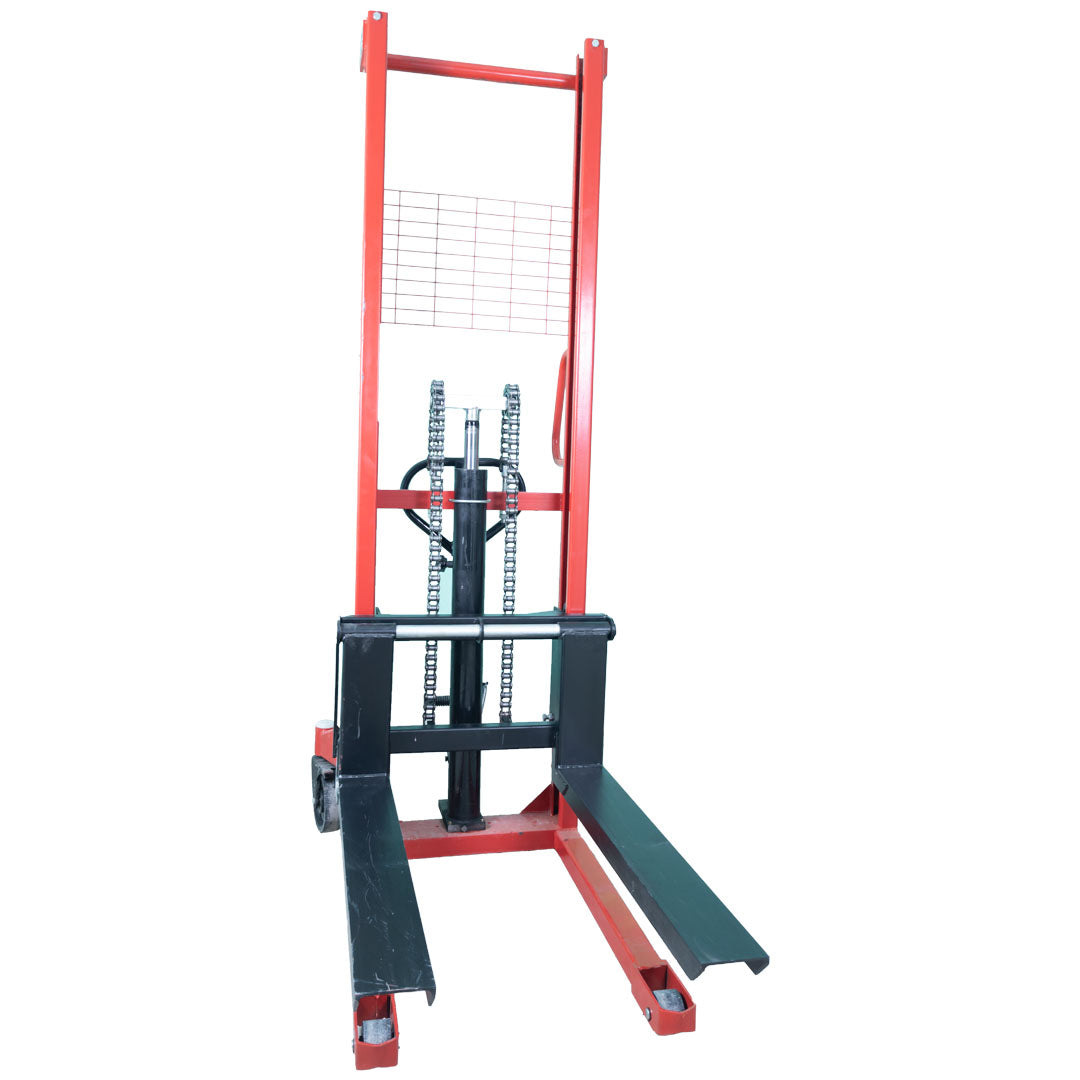

Inaithiram MS2PU16LHB Heavy Duty Hydraulic Manual Stacker 2Ton Capacity 1.6m Lift Height, Adjustable Fork Size (LxW) 900X750mm PU Wheels with Brakes plus Handlebar
59,000
59,000
Inclusive of all taxes
M.R.P.: ₹ 118,000
| Unit Price | = ₹ | 50,000.00 |
| 18% GST | = ₹ | 9,000.00 |
50% Off | Save ₹ 59,000
Get Extra 5% off on your first order View all Offers
Product Features
| Product Type/Style | Hydraulic Manual Stacker |
|---|---|
| Special Features | Quick Lift and Release, Proportional Lowering, Adjustable Forks |
| Warranty | 01 Year against Manufacturing Defects |
| Assembly Kit | Required, Minimal use of spanners and screwdrivers |
| Brand Name | Inaithiram |
| Material | Mild Steel |
| Load Capacity | 2000kg(2Ton) |
| Item Dimension LxWxH | 1400mmX750mmX2040mm |
| Item Weight | 250kg |
| Finish Type | Powder Coated |
| Wheel Material | PU, Polyurethane |
About this item
- Built from durable mild steel with an average frame thickness of 3.8 mm, Inaithiram MS2PU16LHB hydraulic manual stacker ensures a sturdy and long-lasting frame for heavy-duty usage.
- Capable of effortlessly lifting heavy loads to 2000kg, ensuring superior strength and reliability for a wide range of material handling tasks.
- Achieve a maximum lifting height of 1600mm, facilitating efficient vertical movement of goods in diverse industries.
- Forks feature a versatile width adjustment range from 460mm to 750mm, providing adaptability to handle various load sizes and shapes with ease.

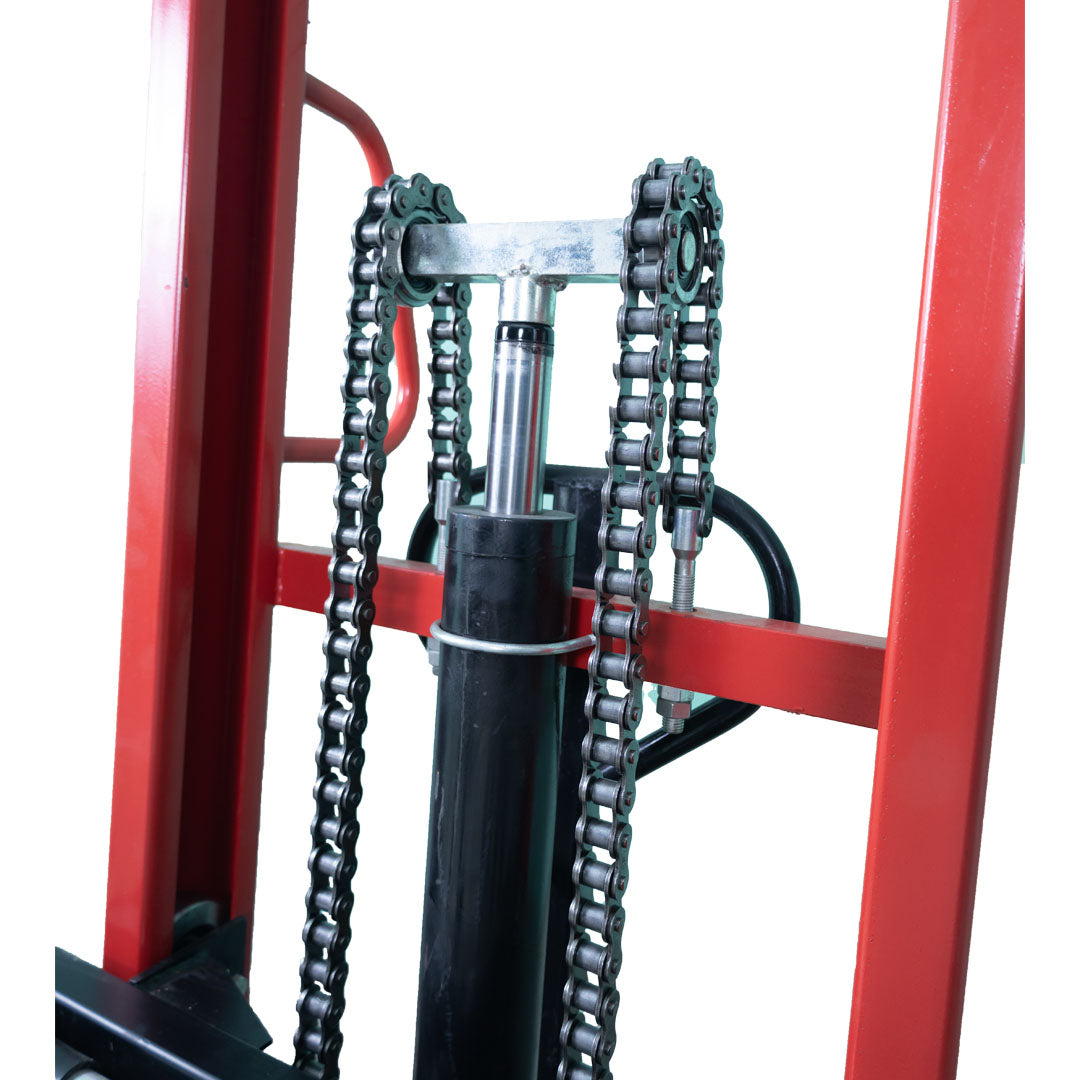

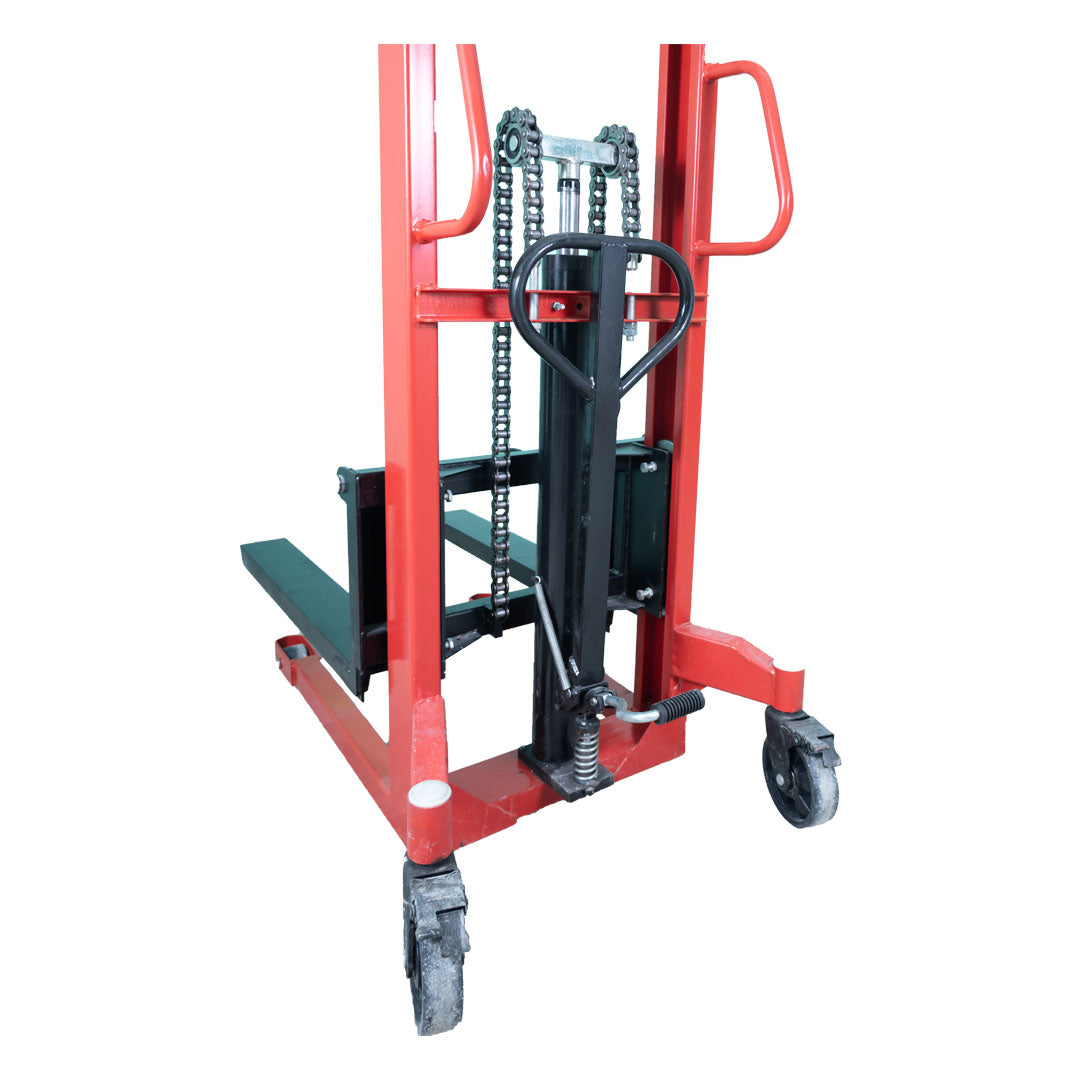

- Easily lift loads with the manual hydraulic pump, operable by foot or hand, ensuring operational flexibility. The hydraulic pump is crafted from machined cast steel, enhancing durability and ensuring consistent performance of this manual hand pallet stacker.
- The frame features a powder-coated finish, offering protection against wear and corrosion and also contributing to an attractive appearance.

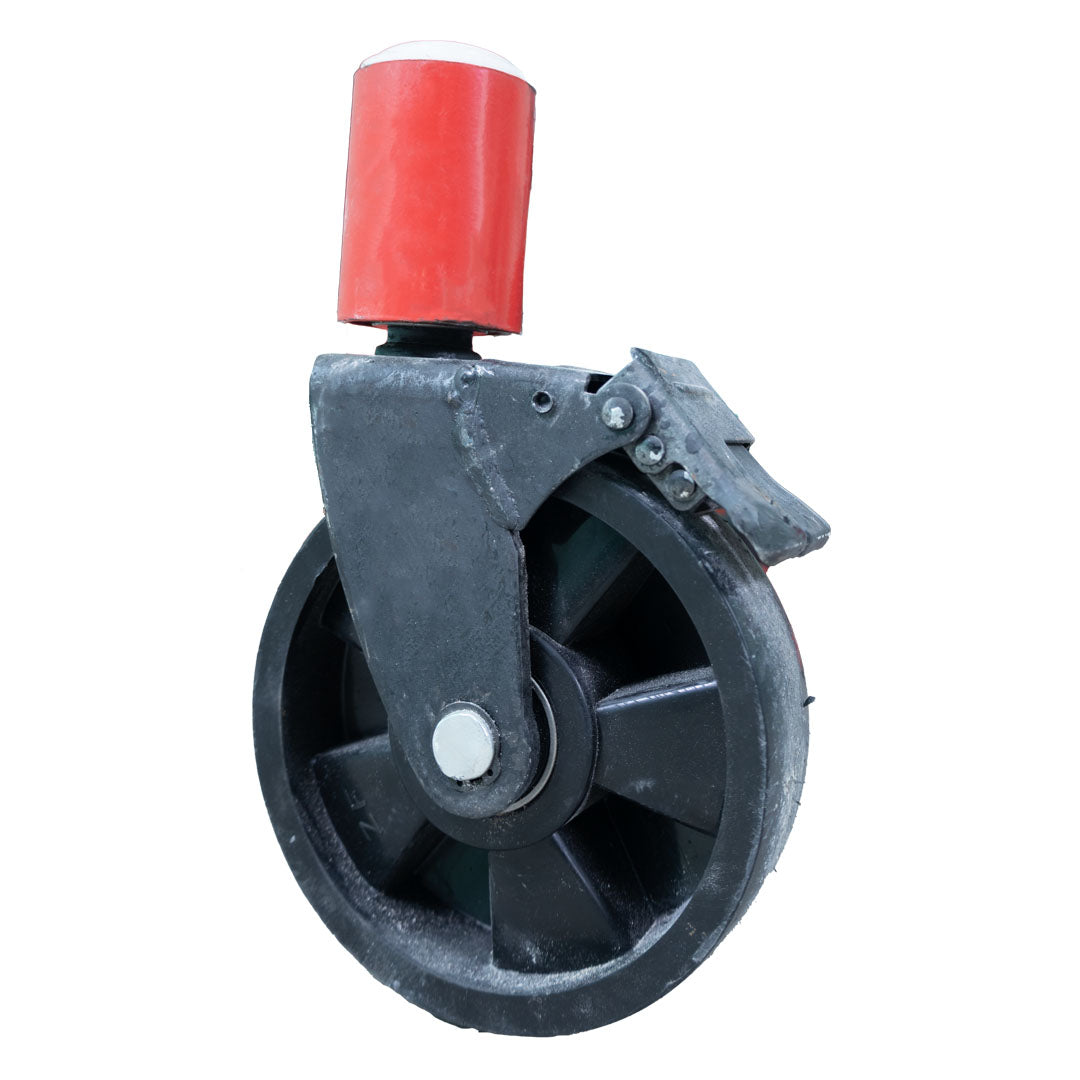

- Steering wheels made of polyurethane (PU) material provide superior safety and control, reducing the risk of drifting.

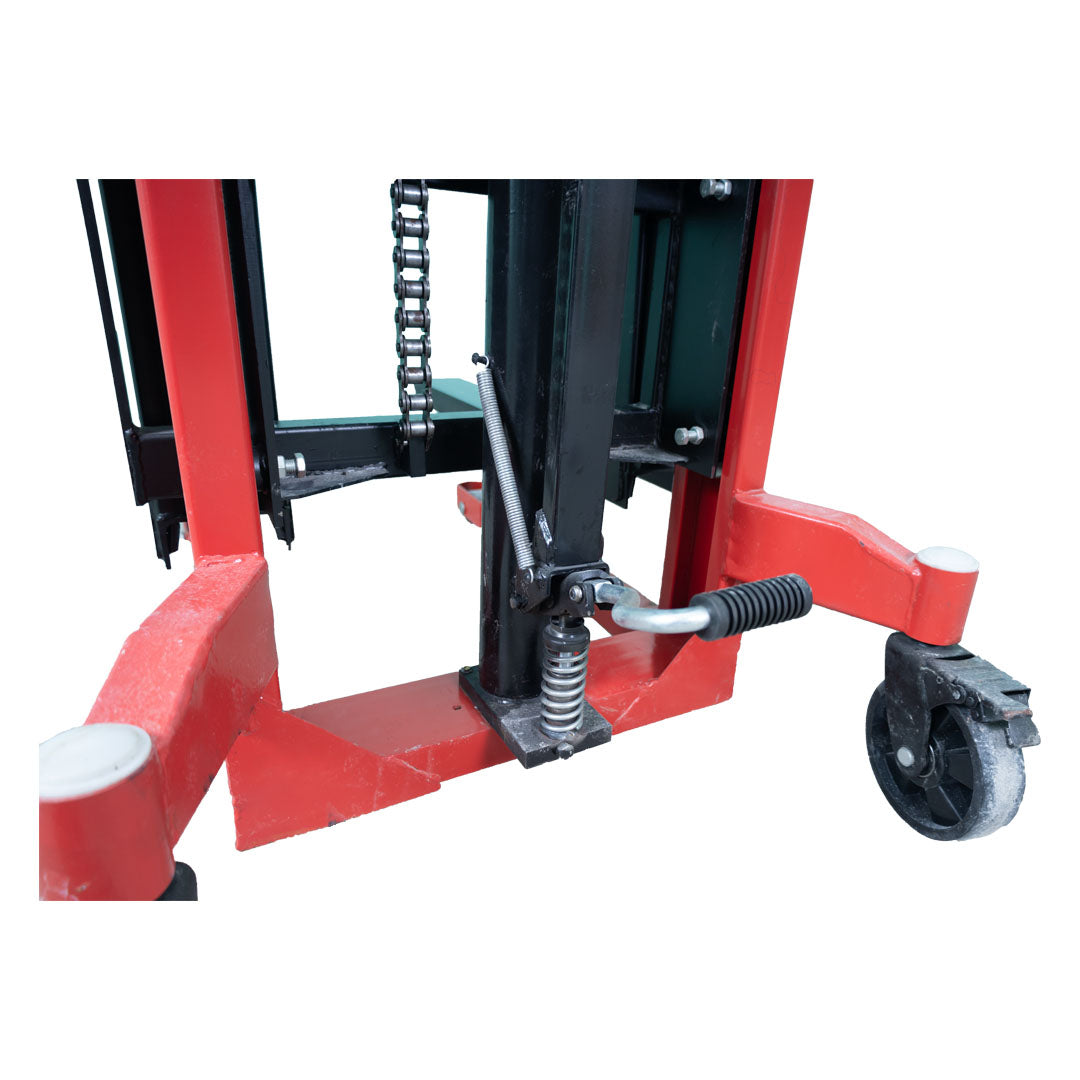

- Equipped with a single wheel pedal brake, the hand stacker ensures stability and secure positioning during material handling tasks.

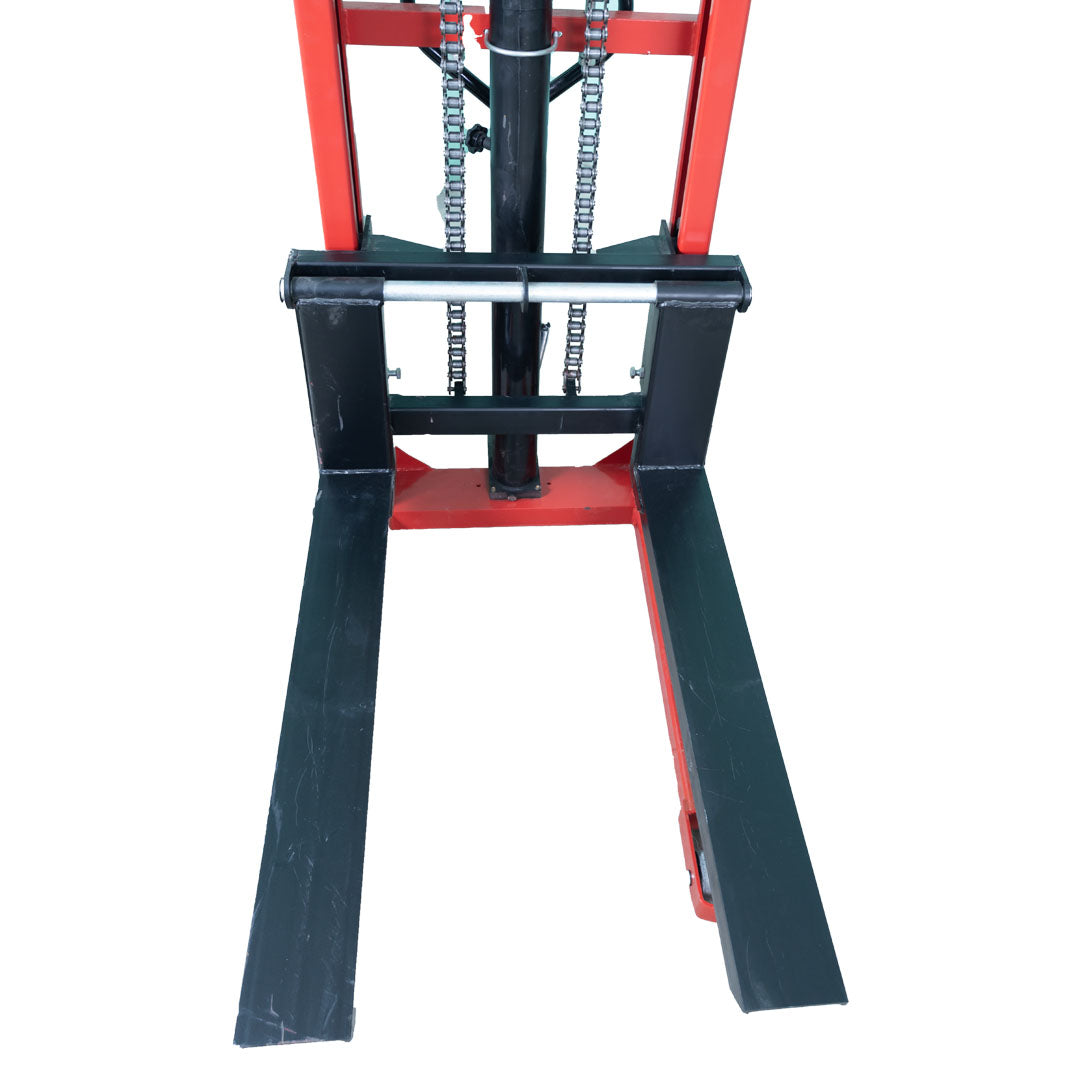

- Forks with a length of 900mm and a total fork width of 750mm provide ample space for accommodating different-sized loads.
- The fork height in a lowered condition is 85mm, ensuring easy entry under pallets or loads with low ground clearance.
- Equipped with proportional lowering for precise control, the manual stacker forklift minimizes the risk of tilting or tipping during material handling.
- Features a quick lift and release function, enhancing efficiency in lifting and lowering tasks for swift material handling.
- Balancing substantial strength and effortless mobility, the Inaithiram 2ton manual stacker ensures stability during heavy-duty tasks while providing ease in maneuvering for increased operational efficiency.
- The useful size of 1400x750x2040mm features a compact design for easy maneuverability in tight spaces from warehouses to retail stores, ensuring optimal usability.
Product Specifications
| Model Number | WH-MH-MS2PU16LHB |
|---|---|
| Product Type | Hydraulic Manual Stacker |
| Load Capacity | 2000kg(2Ton) |
| Item Dimension LxWxH | 1400mmX750mmX2040mm |
| Item Weight | 250kg |
| Fork Length | 900mm |
| Overall Fork Width | 750mm |
| Single Fork Width | 120mm |
| Total Height | 2040mm |
| Turning Radius | 1500mm |
| Ground Clearance | 80mm |
| Overall Raise From Ground | 1600mm |
| Lift Mechanism | Hand/Foot Operated Hydraulic Mechanism |
| Lifting Capacity (Per Stroke) | 20mm |
| Pump Material | Machined Cast Steel |
| Roller Size (DxW) | 80mmX70mm |
| Steering Wheel Size (DxW) | 180mmX50mm |
| Roller Material | PU, Polyurethane |
| Wheel Material | PU, Polyurethane |
