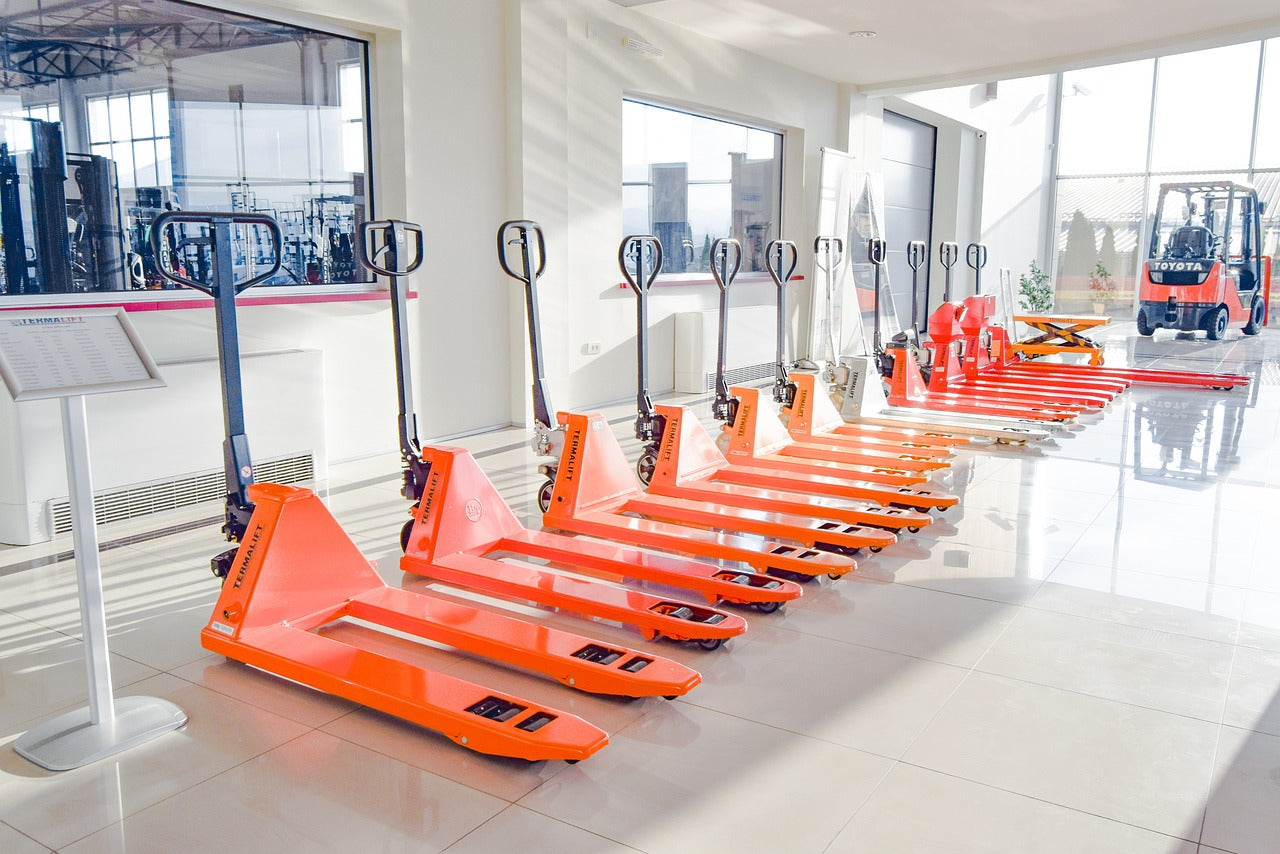

Hand Pallet Trucks: Understanding Parts, Functioning, and Safety Features for Efficient Material Handling

Hand Pallet Trucks Parts and Functioning:

A hand pallet truck, also known as a pallet jack or pump truck is a manually operated device used to lift and move pallets or heavy loads within warehouses, manufacturing facilities, and logistics operations. These versatile material handling devices are designed to lift, move, and transport heavy palletized loads with ease. Material handling pallet trucks consist of several key components that work together to perform their functions. Let's discuss the engineering details and how a hand pallet truck operates.

Frame and Forks:

The frame is the main structure of the hand pallet truck, typically made of steel or other strong materials. It provides stability and support to the entire truck.

The forks of the hand pallet trucks are long, parallel bars extending from the front of the truck and serve as the load-bearing platform. They are designed to fit underneath pallets, allowing the truck to lift and transport them.


A hand pallet truck typically has two large wheels at the back, known as drive wheels or load wheels located at the end of the forks in the material handling truck. These wheels provide the main support and allow the truck to move forward and backward. The load-bearing wheels in the pallet truck offer excellent load-bearing capacity and resistance to wear and tear. Load wheels are essential for smoothly maneuvering the pallet truck under loaded pallets.

There are two smaller wheels or rollers at the front of the truck, called the steer wheels or front wheels. The steer wheels are located at the rear of the pallet truck, enabling steering and control during operation. These wheels pivot and enable steering and maneuverability.

Hydraulic Pump System:

The hydraulic pump system is the heart of the hand pallet truck and is responsible for lifting and lowering loads.

The hydraulic system in the hand pallet truck consists of a hydraulic cylinder, piston, and pump lever. When the operator pumps the lever up and down, it activates the hydraulic cylinder, which exerts pressure on the piston.

The pressure generated by the hydraulic cylinder is transmitted to the lift mechanism, allowing the forks to rise or descend.

Control Lever:

The control lever is typically located on the handle of the hand pallet truck. It controls the hydraulic pump system and various operations.

By pumping the lever, the operator raises the forks to lift the load. Releasing the lever slowly lowers the forks.

Load Backrest:

A hand pallet truck may feature a load backrest, which is a vertical metal plate attached to the forks. It prevents the load from sliding backward during transportation, improving stability and safety.

Safety Features:

Safety is paramount when operating hand pallet trucks. Hand pallet trucks often include safety features such as an overload valve, which prevents excessive loads from being lifted beyond the truck's capacity.

Some models of the material handling pallet truck have a parking brake or foot pedal to secure the truck in place when not in use.

Operating a hand pallet truck involves the following steps:

  1. Position the forks at the entry points of the pallet.
  2. Pump the control lever to raise the forks, lifting the load off the ground.
  3. Steer the pallet truck using the handle and maneuver it to the desired location.
  4. Gradually release the control lever to lower the forks and place the load on the ground.
  5. Once the load is safely on the ground, remove the forks from the pallet.

It's important to note that hand pallet trucks have weight limits, and exceeding these limits can compromise safety and damage the truck. Proper training and adherence to safety guidelines are essential when operating a hand pallet truck.


Hand pallet trucks are valuable tools for efficient material handling, ensuring the smooth movement of heavy loads within warehouses and other industrial settings. By utilizing hand pallet trucks with proper knowledge and adherence to safety measures, businesses can enhance productivity, streamline operations, and protect the well-being of their workforce. From the forks and load wheels to the hydraulic system and pump handle, each component plays a crucial role in the overall performance of a hand pallet truck. By familiarizing yourself with these parts and their functioning, you can ensure safe and efficient material handling operations in your workplace.
